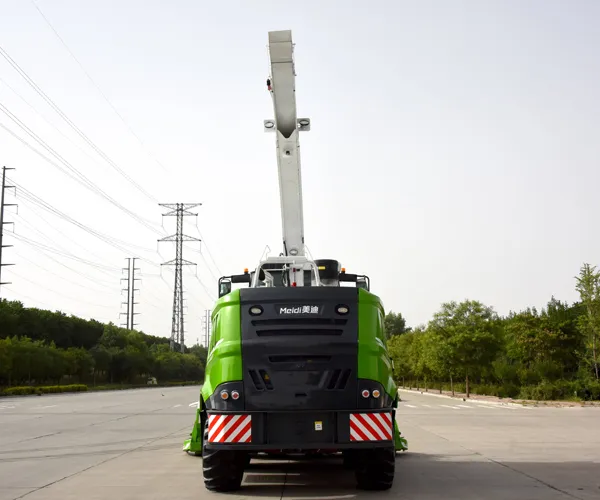

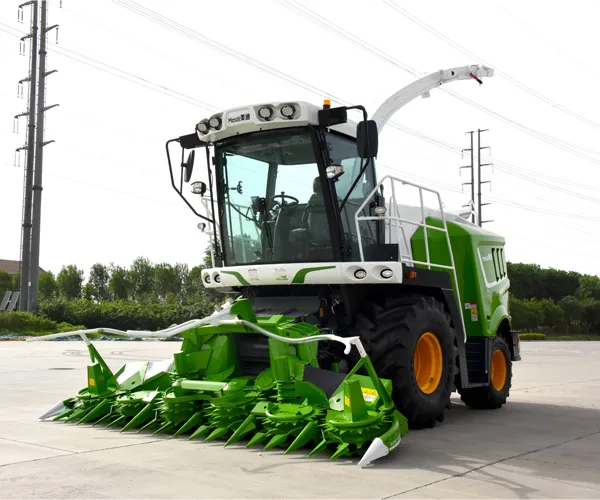

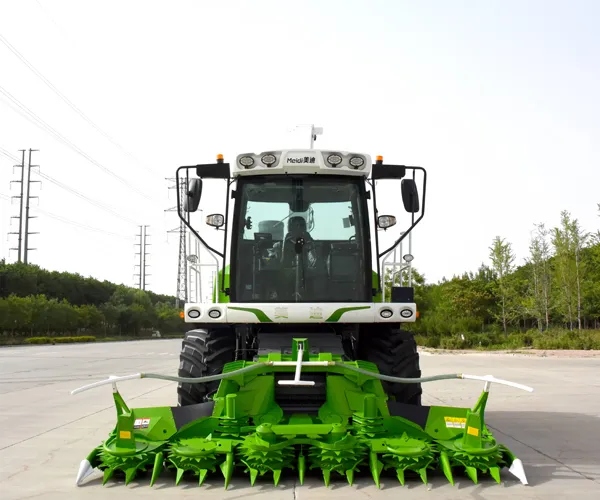

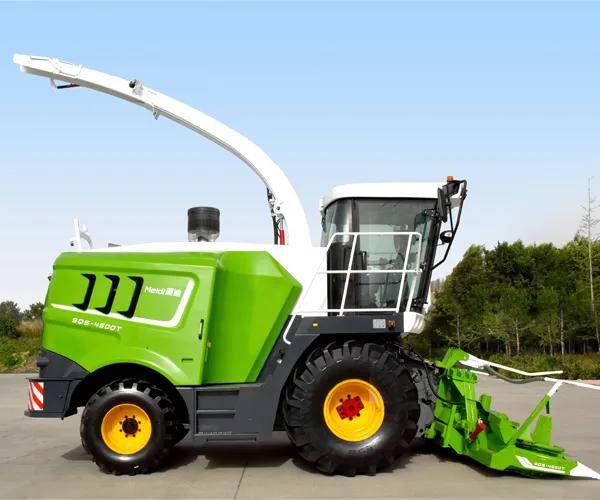

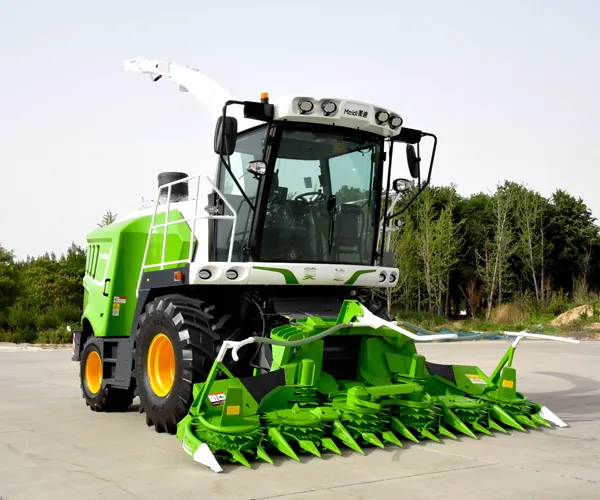

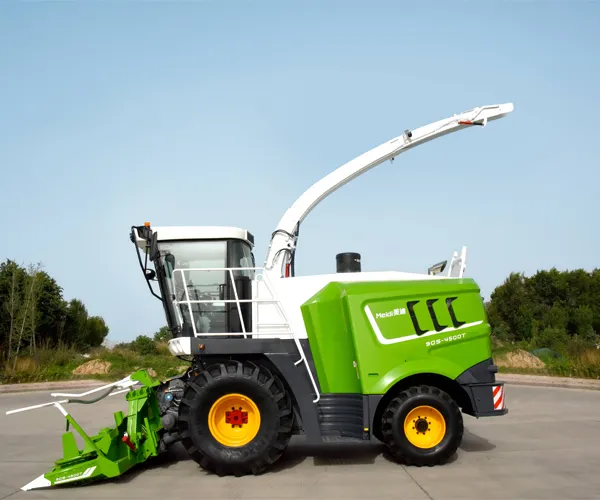

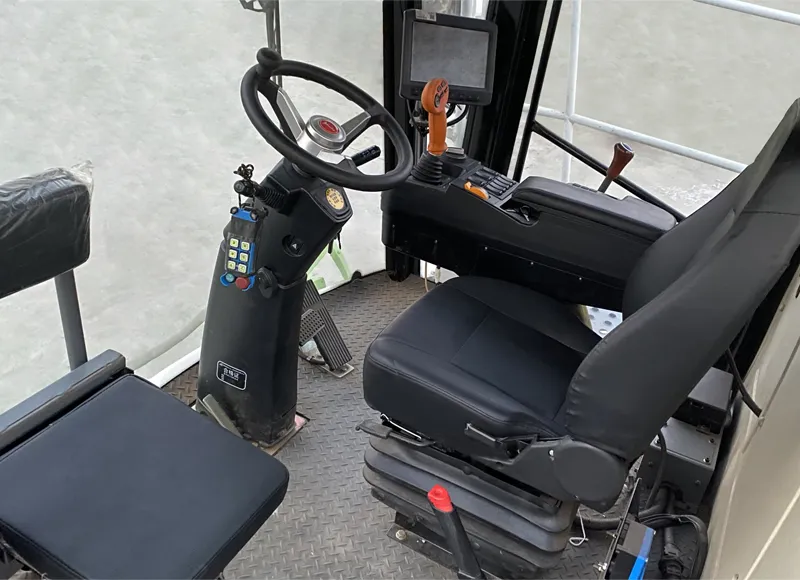

The Meidi 4500T is a high-end intelligent harvester equipped with a 480 HP engine and a 4.5-meter wide header, achieving an operational capacity of 100 tons per hour. With its advanced cracking system and ergonomic cabin design, it delivers superior performance, high efficiency, and user-friendly operation.
| Model | 9QS- 4500T |
| Type | Self-propelled |
| Header working width | 4450 mm |
| Overall dimension under working state (LxWxH) | 8160x4650x5870 mm |
| Theoretical chopping length | Gear 1: Short 6; Long 8 Gear 2: Short 11; Long 14 Gear 3: Short 18; Long 22 |
| Engine power | 353kW/480 ps |
| Rated engine speed | 1900 r/min |
| Chopping drum speed | 1 140 r/min |
| Header cutting type | Disk- -type cutting knife |
| Type of straw chopping mechanism | Roller type |
| Number of moving cutter | 20 pieces |
| Harvest efficiency | ≥28 kg/s |
| Stubble height | ≤150 mm |
| Throwing angle | 土90 degrees |
| Wheel base | 27 10mm |
| Loss rate | ≤3% |
| Drive travelling | Hydraulic drive |
| Brake type | Disk type |
| Drive wheel tread (front) | 2400mm |
| Guide wheel tread (rear) | 2110mm |
| Tire specification of drive wheel (front) | 750/65R26 |
| Tire specification of guide wheel (rear) | 500/60-22.5 |
| Operating speed | 2-10km/h |
Need help selecting the right chopping length or machine configuration? Send Meidi your crop type, expected yield and required daily output for a technical recommendation.

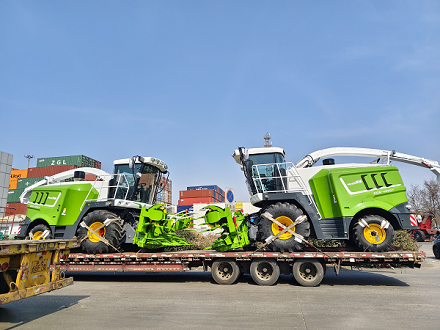

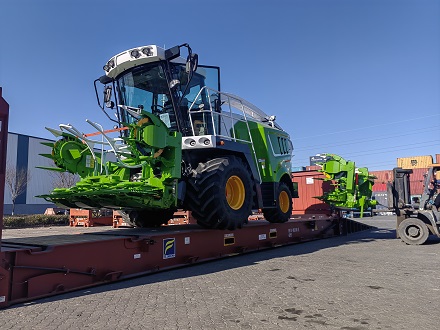

Each forage harvester shipment is prepared according to the confirmed machine configuration, destination and transport requirements. Before dispatch, the main machine, header and ordered accessories are checked against the packing list to ensure that the agreed equipment is included.
