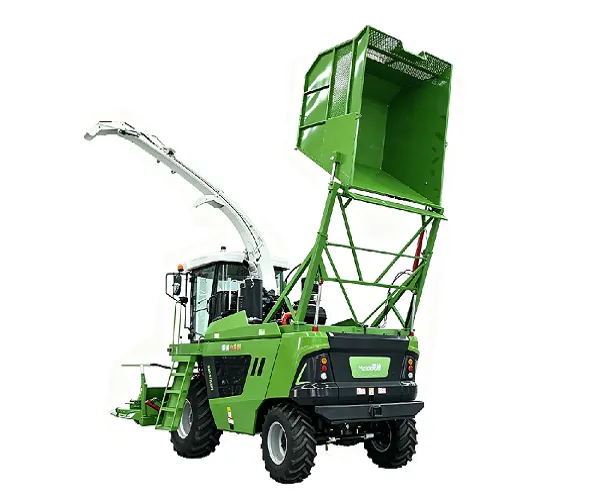

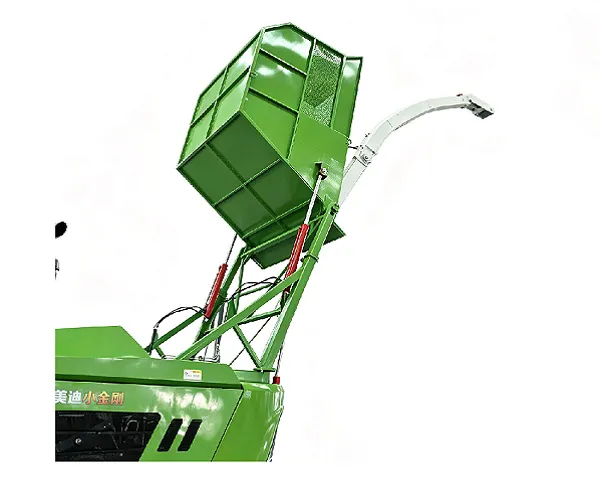

The 9QS-3400W self-propelled forage harvester has a secondary lifting hopper, 400HP engine, 4WD, compact design, ≥97% crushing efficiency, hydraulic drive, and is essential for small-medium livestock farms.
| Model | 9QS-3400W |
| Type | Self-propelled |
| Header working width | 3370mm |
| Overall dimension under working state(L×W×H) | 7500×3450×5970mm |
| Theoretical chopping length | Gear 1:Short 6;Long 8, Gear 2:Short 11;Long 14 Gear 3:Short 18;Long 22 |
| Engine power | 242KW/400hp |
| Rated engine speed | 2200 r/min |
| Chopping drum speed | 1180 r/min |

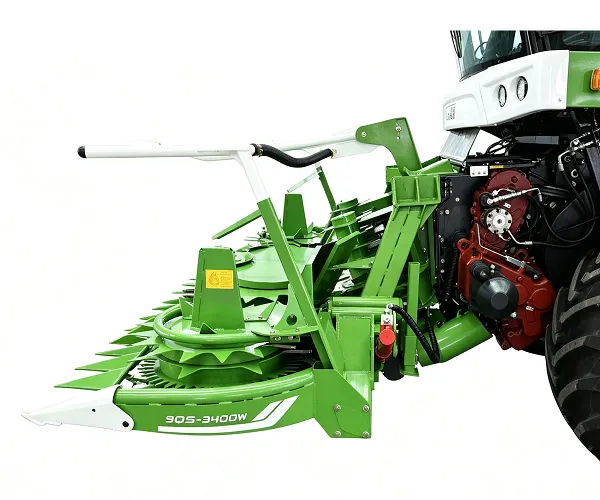

| Header cutting type | Disk-type cutting knife |
| Type of straw chopping mechanism | Roller type |
| Number of moving cutters | 20 pieces |
| Harvest efficiency | 14kg/s |
| Stubble height | ≤150 mm |
| Throwing angle | ±90 degrees |
| Wheel base | 2820mm |
| Loss rate | ≤3% |
| Drive travelling | Hydraulic drive |
| Brake type | Internal power boos |
| Drive wheel tread (front) | 2110mm |
| Guide wheel tread(rear) | 1950mm |

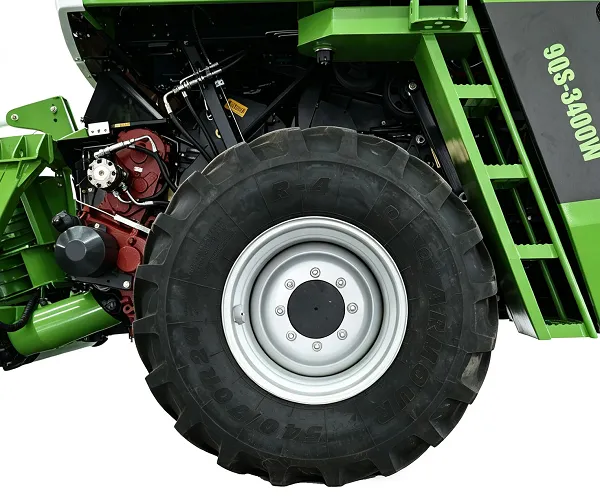

| Tire specification of the drive wheel (front) | 500-70R24 |
| Tire specification of guide wheel (rear) | 340-80R20 |
| Operating speed | 2-14km/h |
Designed for medium-sized dairy farms
Suitable for continuous harvesting
Low fuel consumption
High chopping efficiency
Easy maintenance
Hydraulic transmission
Comfortable cab
| Model | 9QS-3400W | 9QS-4500S | 9QS-6000S |
| Engine | 400HP | 560HP | 650HP |
| Width | 3370mm | 4450mm | 6000mm |
| Suitable Farm | Medium | Large | Very Large |
| 4WD | Optional | Yes | Yes |
What crops can the 9QS-3400W harvest?
Corn silage, alfalfa, ryegrass, sorghum, oat grass and other forage crops.
Is it suitable for dairy farms?
Yes.
Does it have a grain processor?
Yes.
Can the chopping length be adjusted?
Yes.
Yes.
