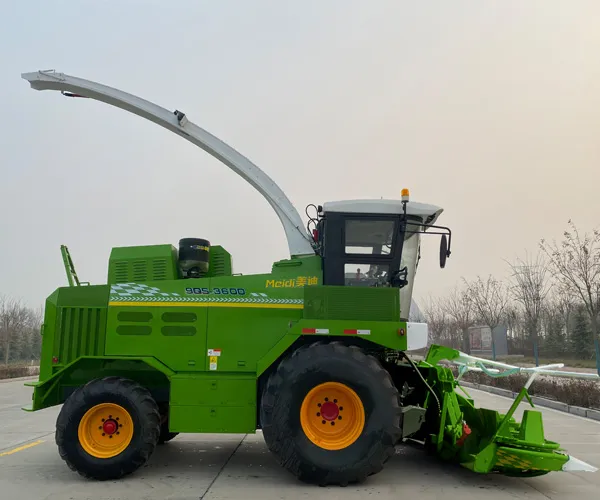

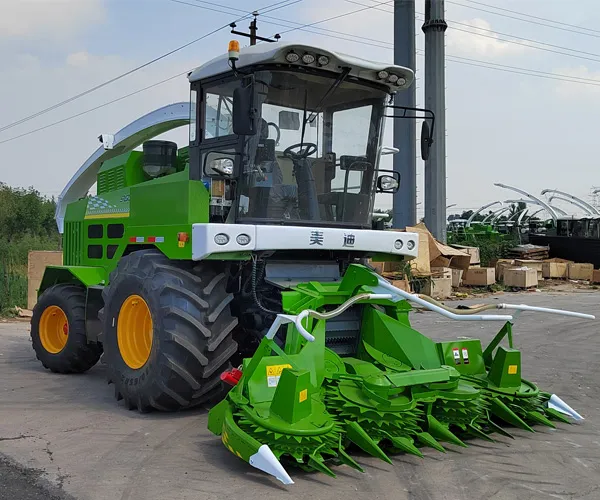

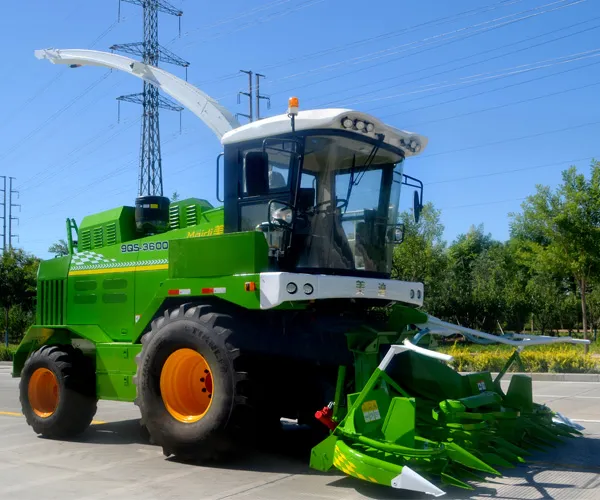

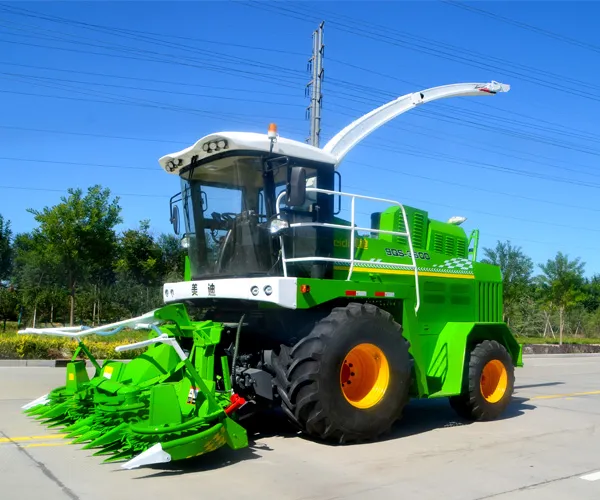

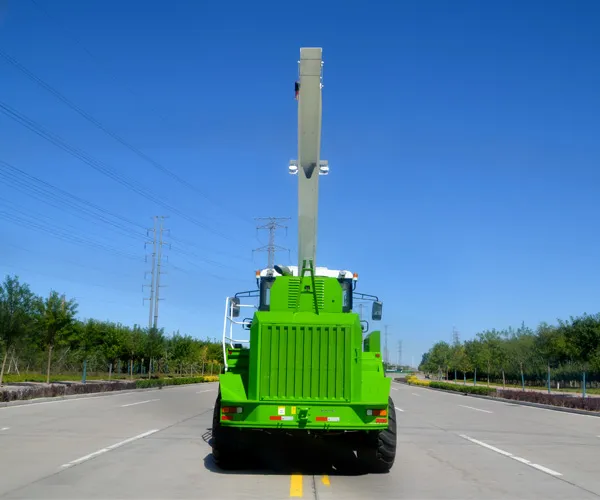

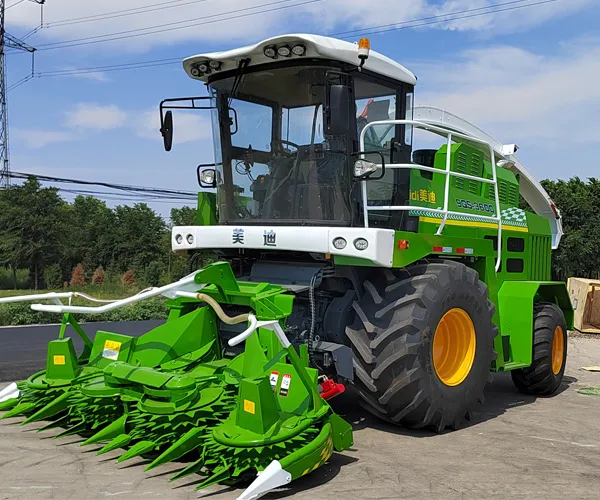

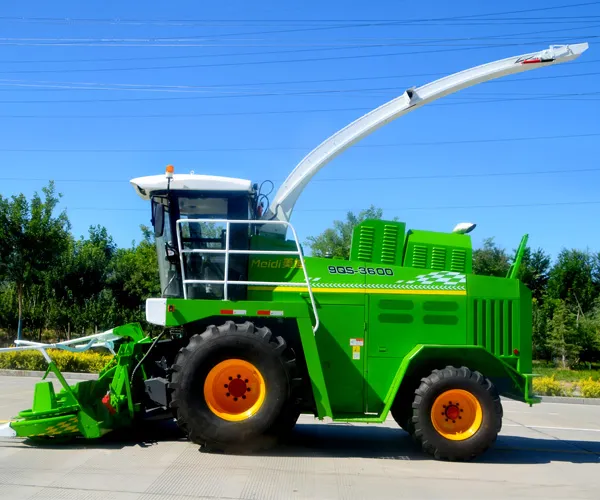

Meidi 9QS-3600 Green Feed Harvester has a 3.6m foldable header, tungsten carbide blades, ≥97% crushing rate, 400 HP engine, hydrostatic drive, radial tires, and a spacious cab for easy, efficient operation.
| Model | 9QS-3600 |
| Type | Self-propelled |
| Header working width | 3520 mm |
| Overall dimension under working state(L×W×H) | 7700×3710×5550 mm |
| Theoretical chopping length | Gear 1:Short 6:Long 8 Gear 2:Short 11:Long 14 Gear 3:Short 18;Long 22 |
| Engine power | 294kW/400 ps |
| Rated engine speed | 2100 r/min |
| Chopping drum speed | 1200 r/min |
| Header cutting type | Disk-type cutting knife |
| Type of straw chopping mechanism | Roller type |
| Number of moving cutters | 20 pieces |
| Harvest efficiency | ≥15kg/s |
| Stubble height | ≤150mm |
| Throwing angle | ±90 degrees |
| Wheel base | 2620mm |
| Loss rate | ≤3% |
| Drive traveling | Hydraulic drive |
| Brake type | Disk type |
| Drive wheel tread(front) | 2330mm |
| Guide wheel tread(rear) | 2100mm |
| Tire specification of the drive wheel (front) | 750/65R26 |
| Tire specification of guide wheel (rear) | 500/60-22.5 |
| Operating speed | 2-10km/h |
